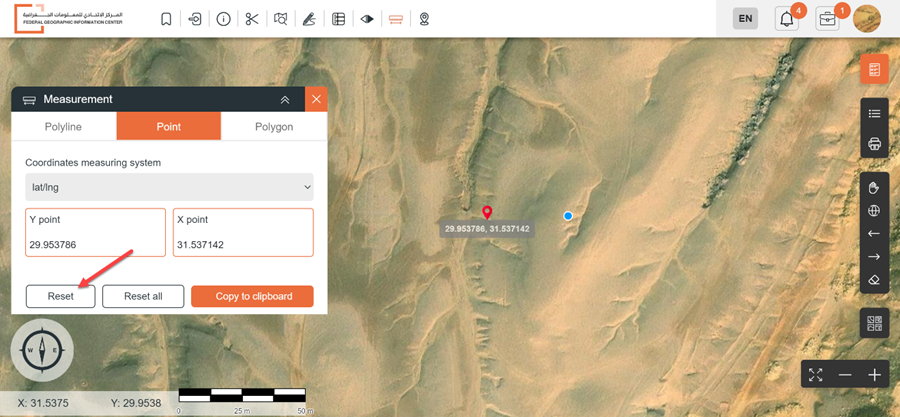

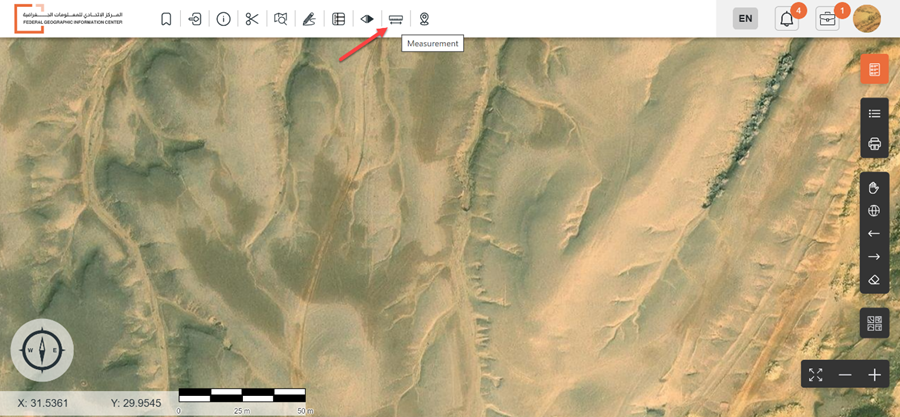

1. Select the Measurement Plugin icon


2. Click the Point tab


3. Select your coordinate reference whether Latitude and Longitude or Degree, Minute and Second


4. Click on the map to select the point you want to measure

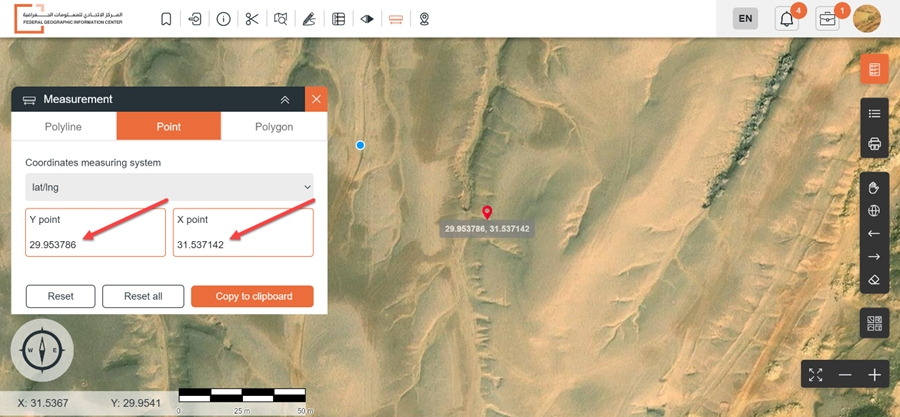

5. Your X and Y coordinate measurement will be displayed on the panel


6. Click on copy to clipboard if you want to copy your coordinate values


7. Click on reset to delete your drawing and its measurement

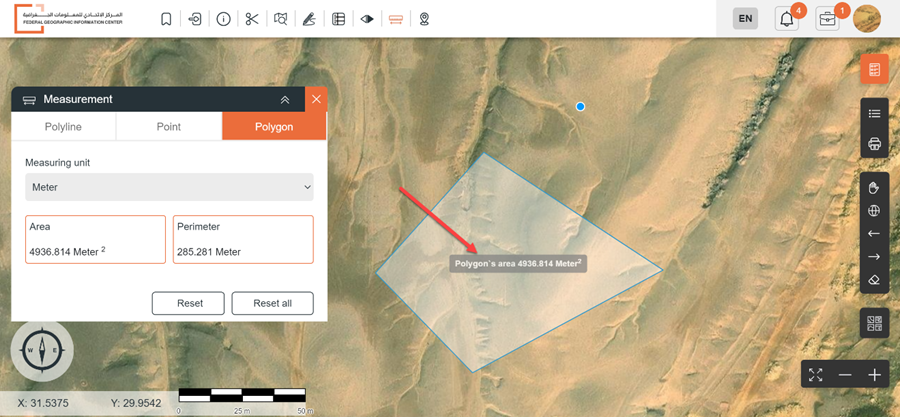

Polygon

1. Select the Measurement Plugin icon

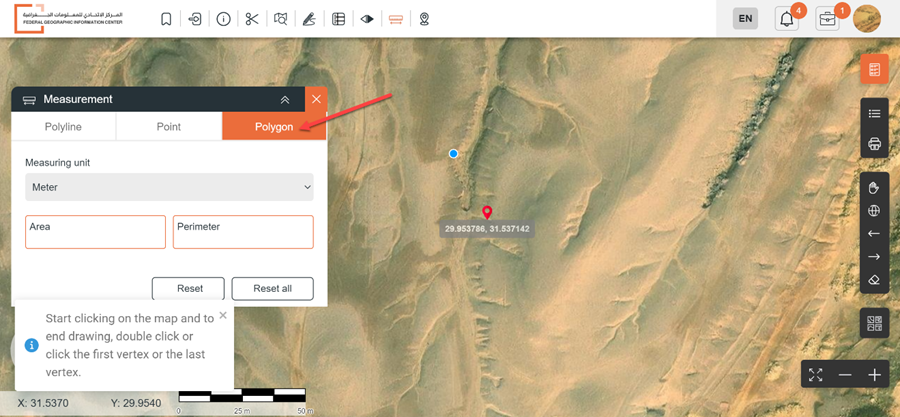

2. Click on Polygon tab

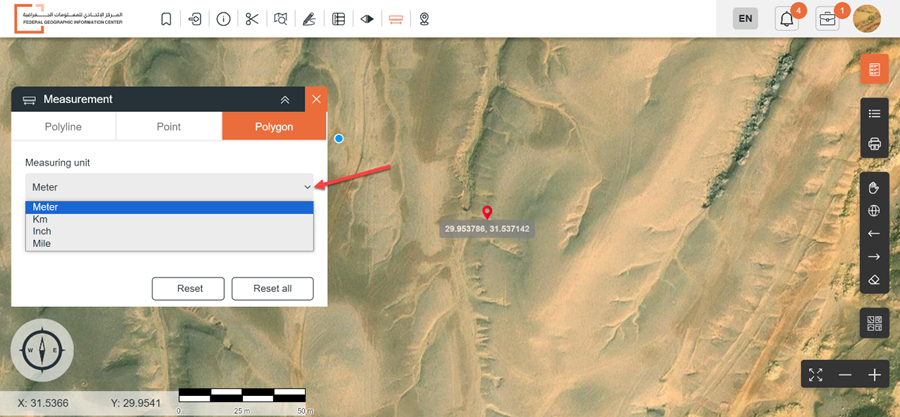

3. Choose the unit of measurement that you want for your polygon

4. Start drawing your polygon on the map. To end the drawing double-click when done or connect your last segment with the first one

5. The Area of the polygon will be displayed on the map

6. The Area and the Perimeter of the polygon will be calculated and displayed in the panel

7. Click on reset to delete your drawing and its measurement




Identify Plugin

This plugin is used to identify a certain point on a certain layer over the map, so when triggered the results will be the information related to the clicked area. this plugin is working on vector layers only.

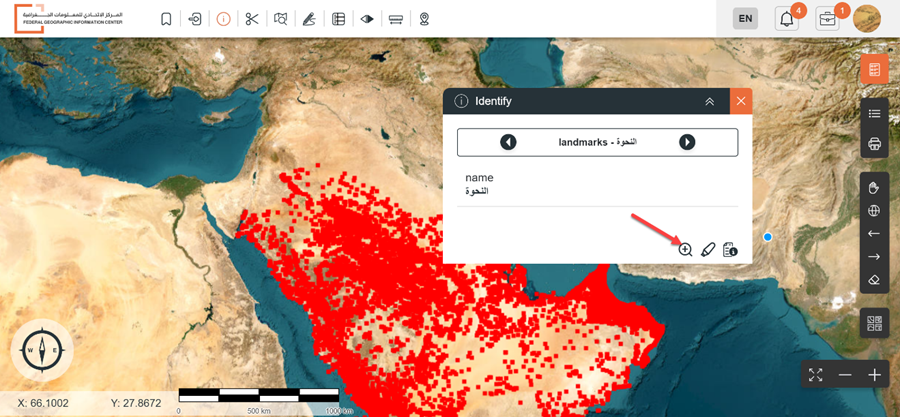

1. Click the identify plugin icon

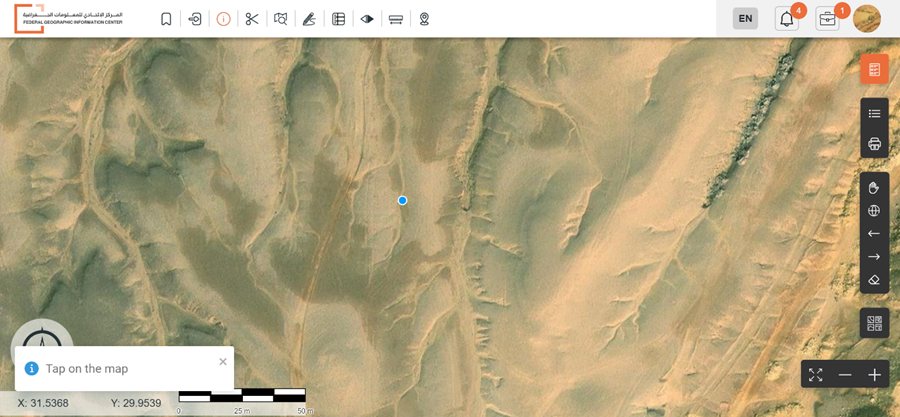

2. Tap on the map to select the area that you want to identify

3. Click the arrow right and left to move between features

4. Click on Zoom icon to zoom on the selected feature

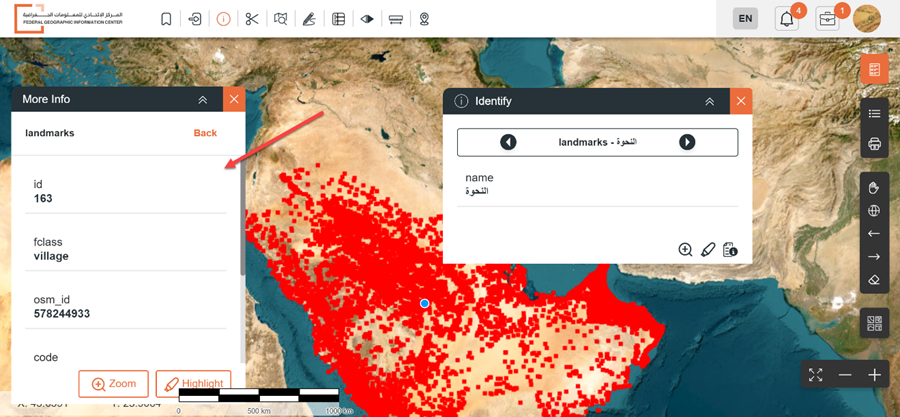

5. Click on the detailed view icon to view all the fields and data for the selected feature


6. Click on the highlight icon to highlight the selected feature


TOC Plugin



By using the TOC plugin you will be able to show your layers in order (configured layers)
and you can control each layer transparency level.
You can also disable or allow the visibility of each layer on the map and you can change the layers order by dragging the layer that you want and drop it in a different order and you will notice the immediate change on the map showing the new order for the layers.
According to the configuration, swatches can be displayed on the map for each layer

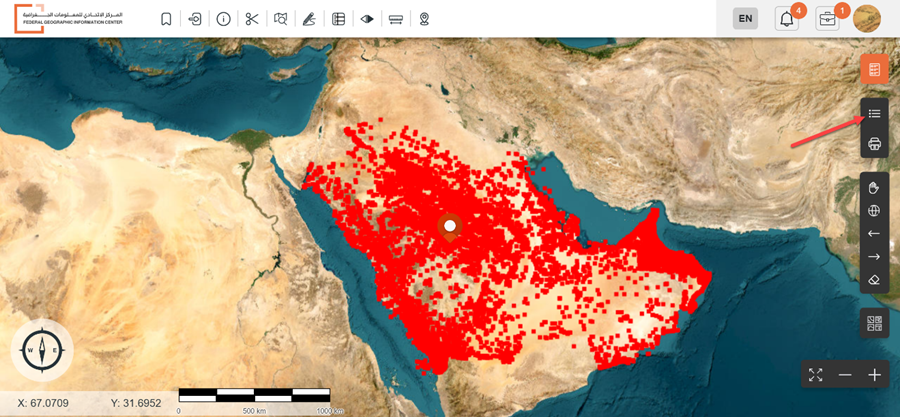

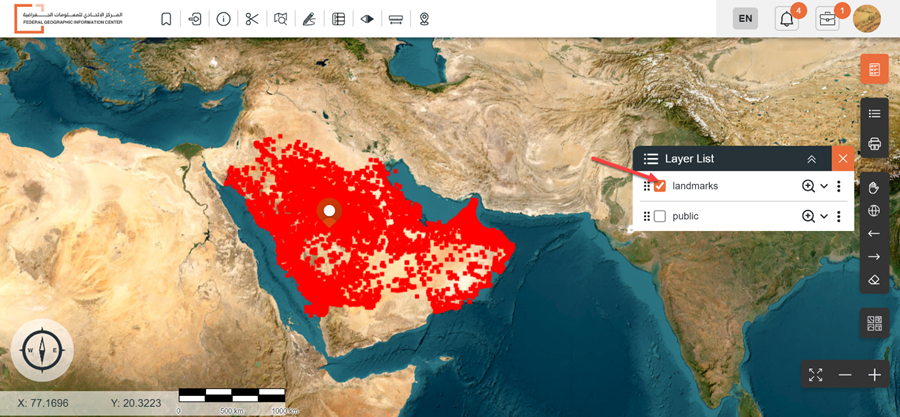

1. Click on the TOC plugin icon

2. Select and Un-select any layer to control its visibility on the map (Selected layers are the visible ones)

3. Click the three dots menu beside the layer then use the opacity slider to control the layer transparency

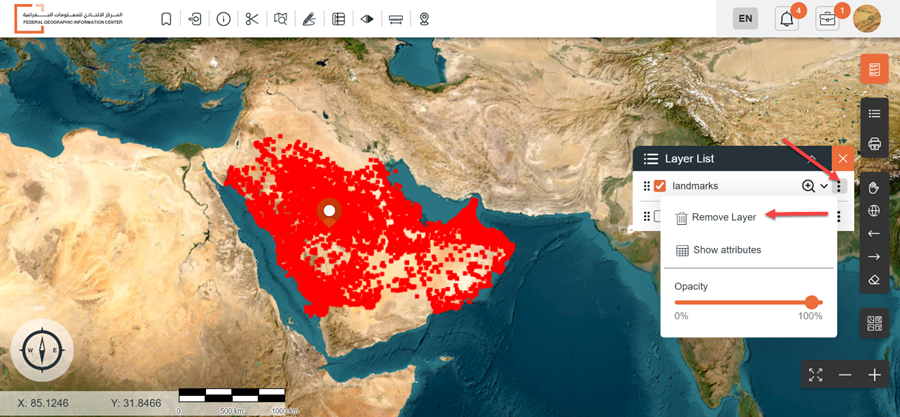

4. To remove a layer, click the three dots menu beside the layer that you want to remove then click on Remove Layer

5. To display the layer attribute, click the three dots menu beside the layer that you want then click on Show Attributes

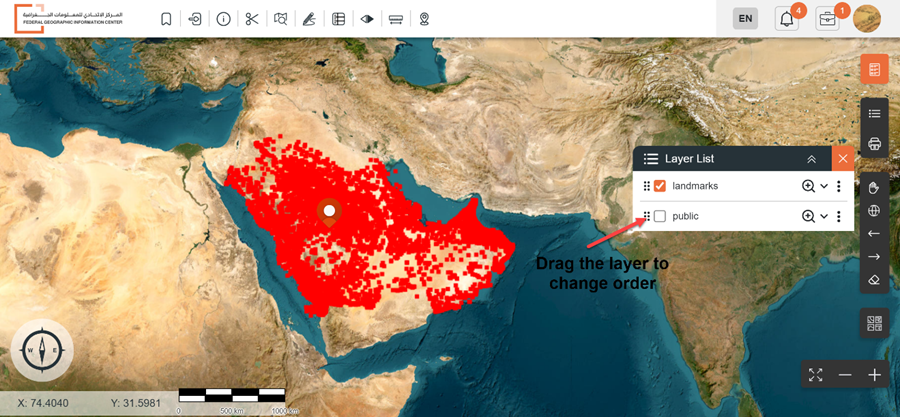

6. Click and drag any layer and drop it inside the TOC panel to change its order and to control its appearance on the map

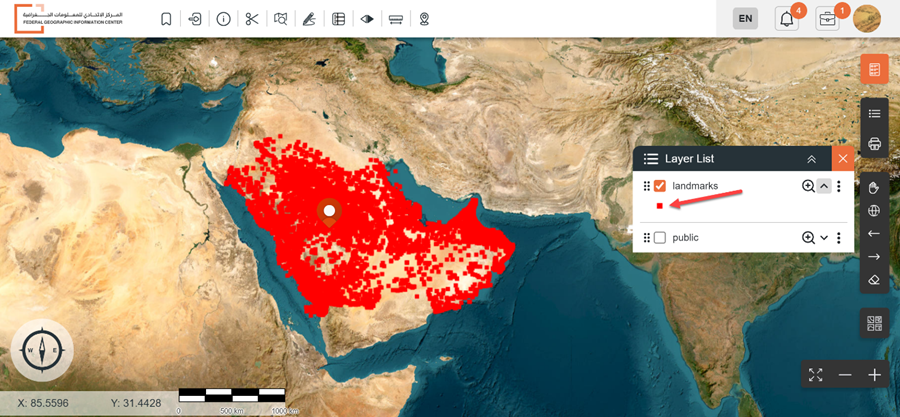

7. Click the small arrow beside the layer that you want to show the swatch (icon representing the layer on the map)


8. Click the Zoom icon to zoom into the layer that you want

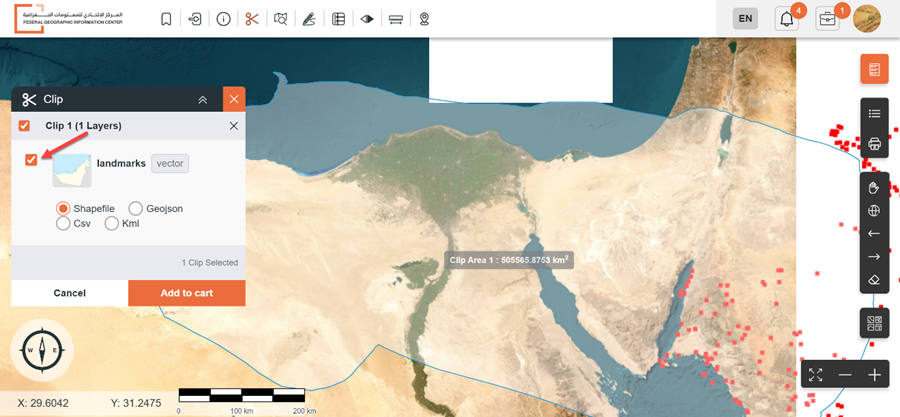

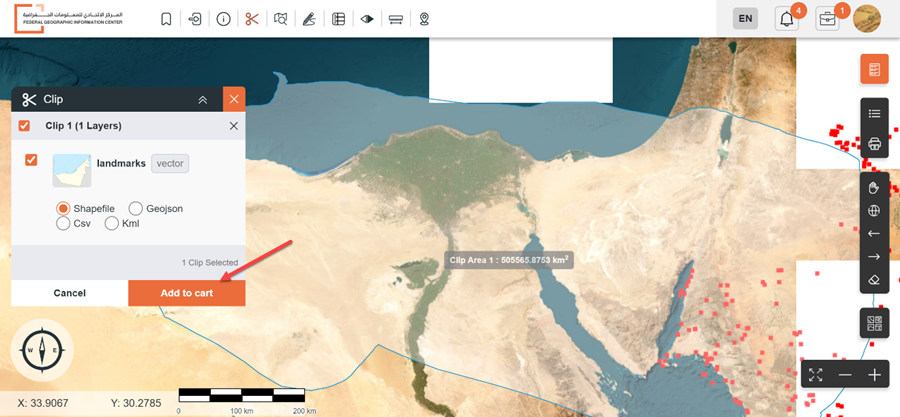

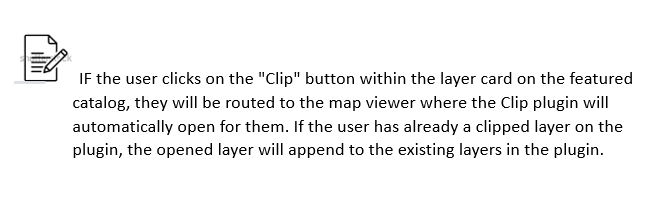

Clip Plugin

A registered user can use the Clip plugin to clip specific pieces from one layer based on a specified boundary or criteria, creating a new layer with the clipped pieces.

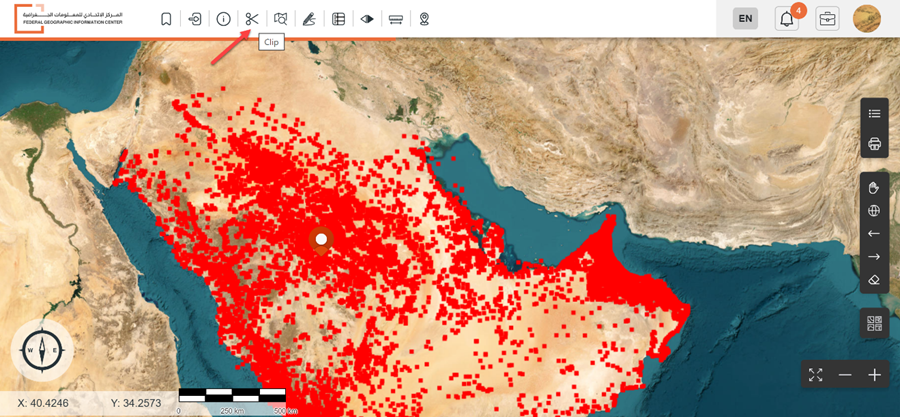

1. Click the Clip Plugin icon

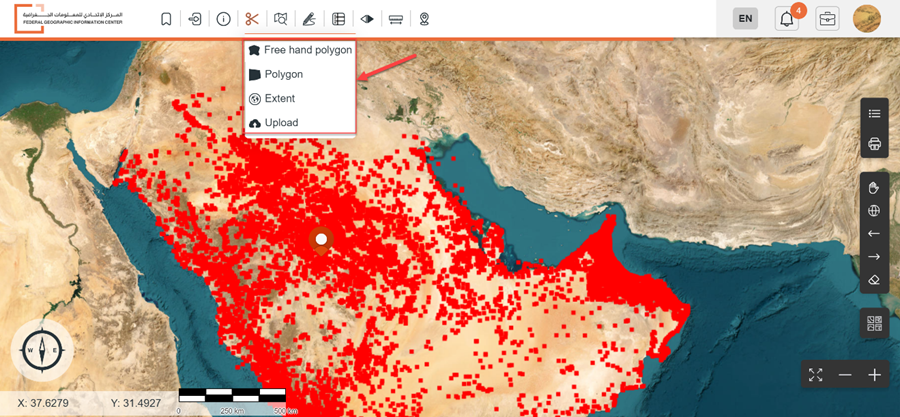

2. Select the Clipping way that you want:

1. Clip by drawing a free hand polygon

2. Clip by drawing a polygon

3. Clip by Extent

4. Or upload a file from your device



3. Start selecting the area that you want to clip

4. The list of layers that fall within the selected area will be listed

5. You can select the layers that you want to include and unselect the layers that you want to remove

6. Select the clipping result extension to be shapefile, geojson, KML or CSV

7. Click on Add to Cart to add the clipped area with the selected layers to your cart

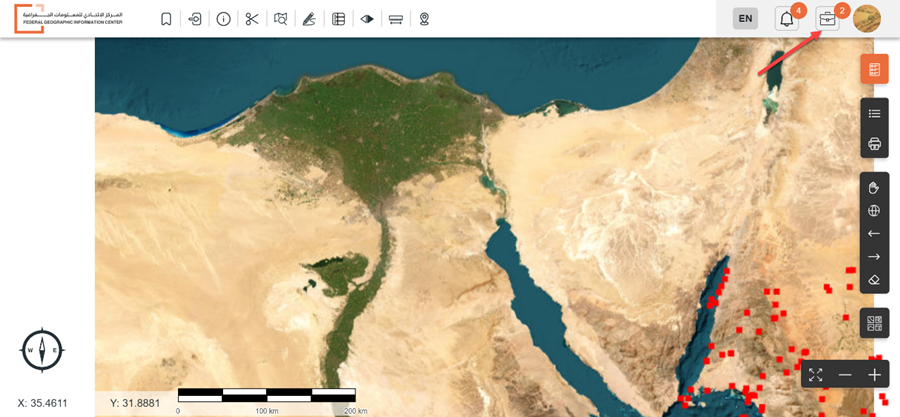

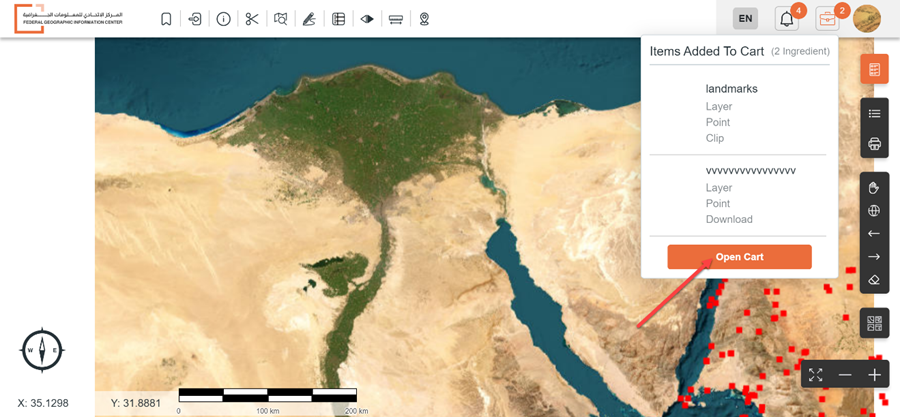

8. Click your cart icon

9. Click on Open cart

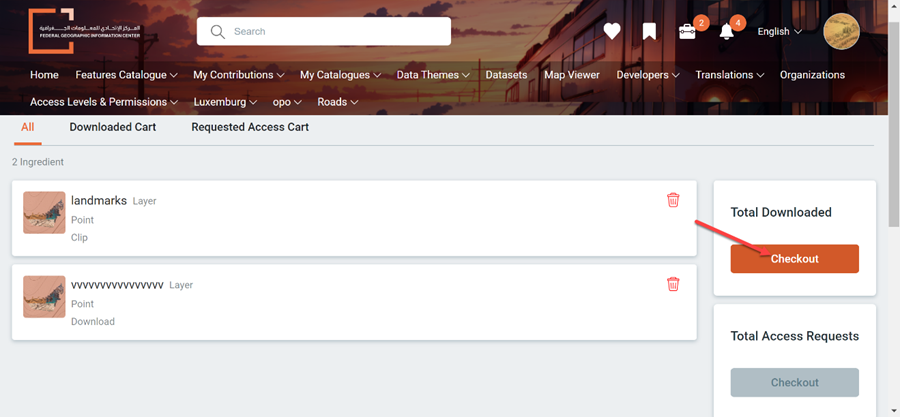

10. Click on checkout

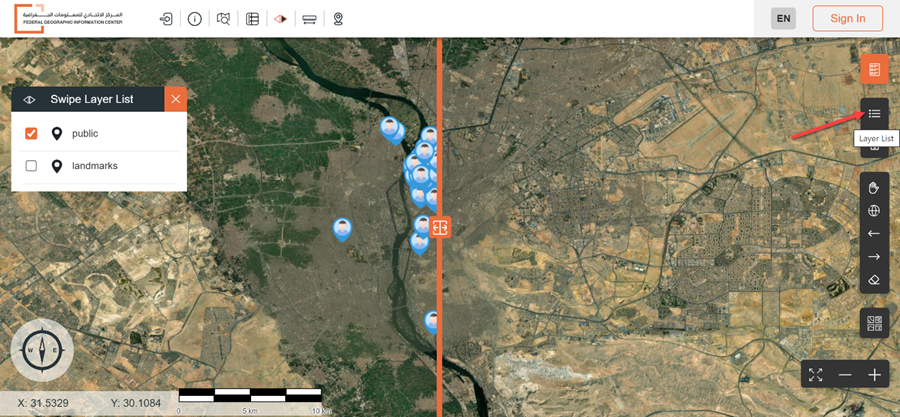

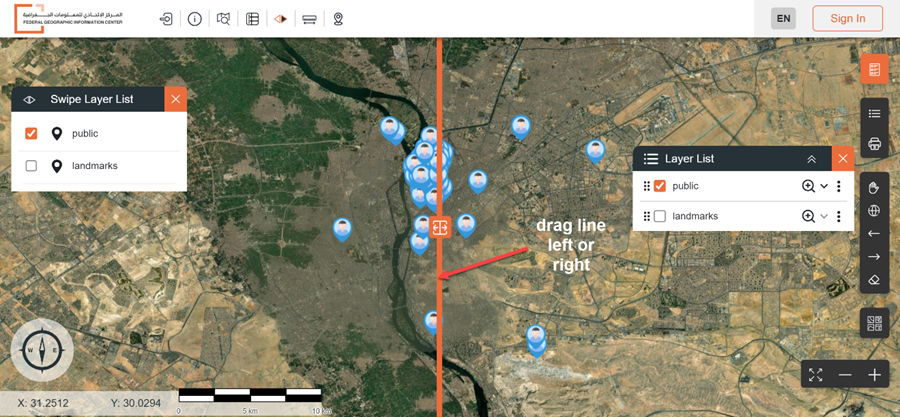

Swipe Plugin

the swipe plugin is used to compare between layers. This functionality enhances the user experience by providing quick access to various views at the same time.

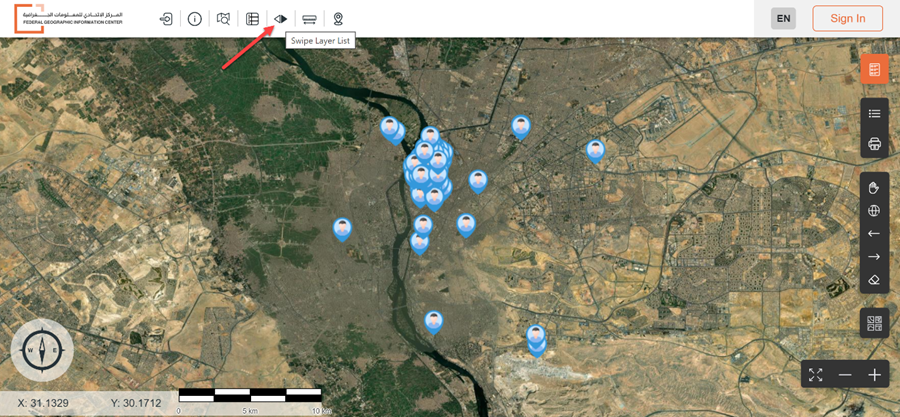

1. Click on Swipe layer plugin icon

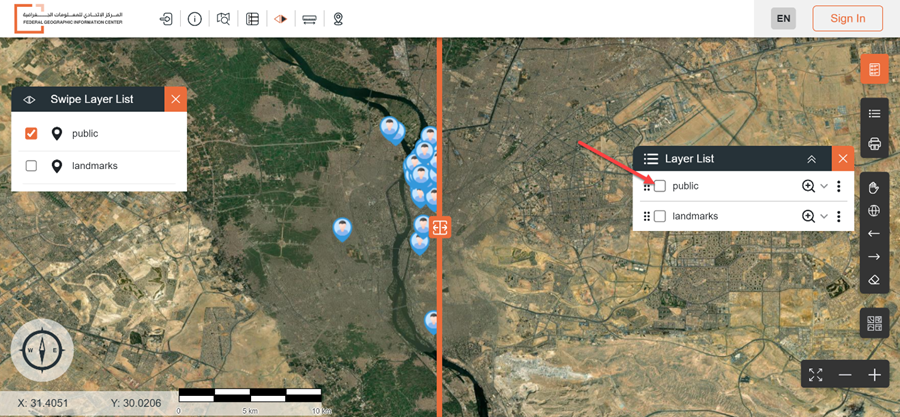

2. The base map viewer splits with two views with the current applied base map

3. A swipe layer list will be displaying the layers imported on the map.
   select the layer that you want to be displayed to the left of the line

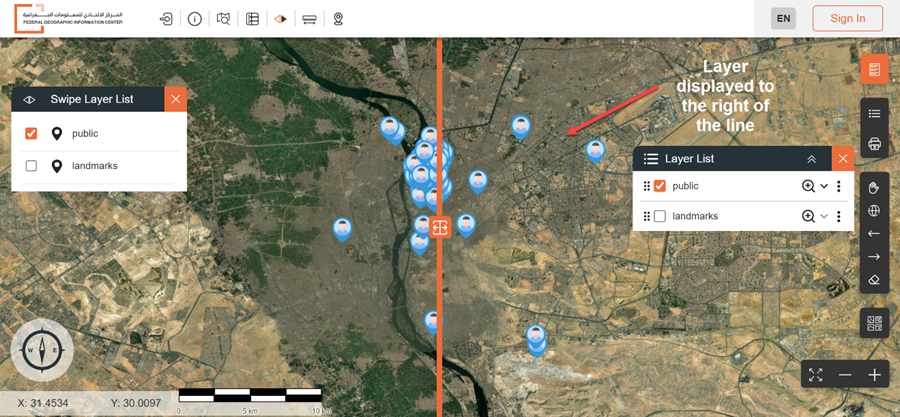

4. Click the TOC plugin (layer list) then select the layer that you want to display to the right side of the line




5. You can drag the line to the right or to the left to control the displayed area from each side


Base Map Gallery Plugin



The base map gallery plugin is used to access and switch between different base maps each offering a unique visual representation of geospatial data.

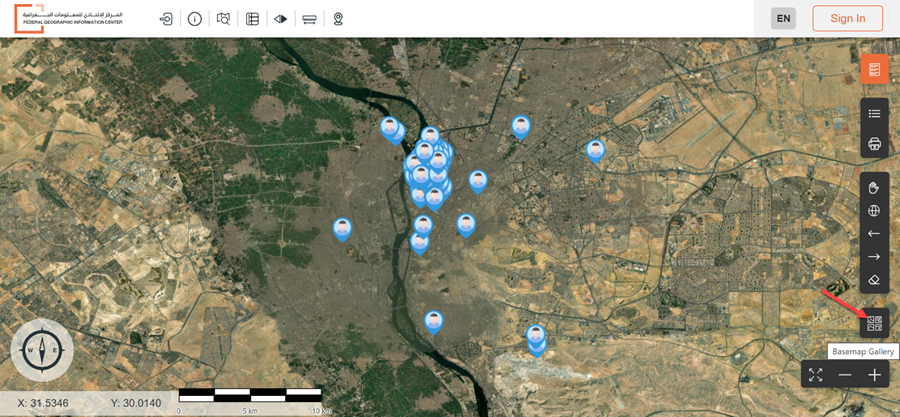

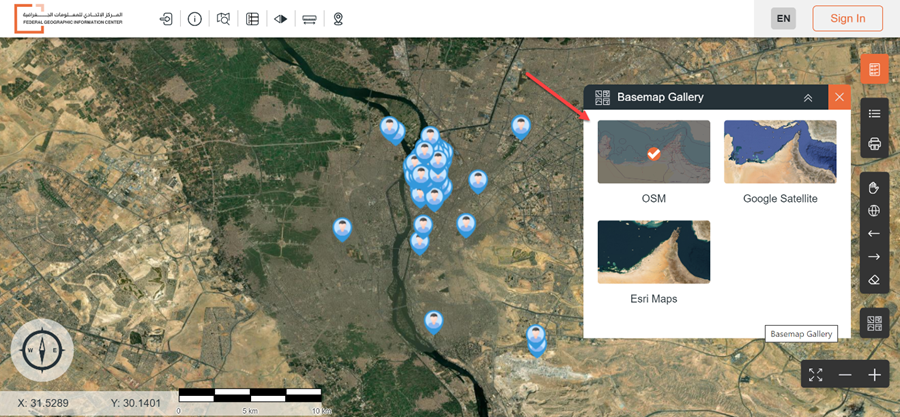

1. Click the base map gallery icon

2. A gallery will open up showing the list of available base map each base map option is represented by a thumbnail preview image that provides a visual depiction of the base map's style and content

3. Select the base map that you want to display on the map

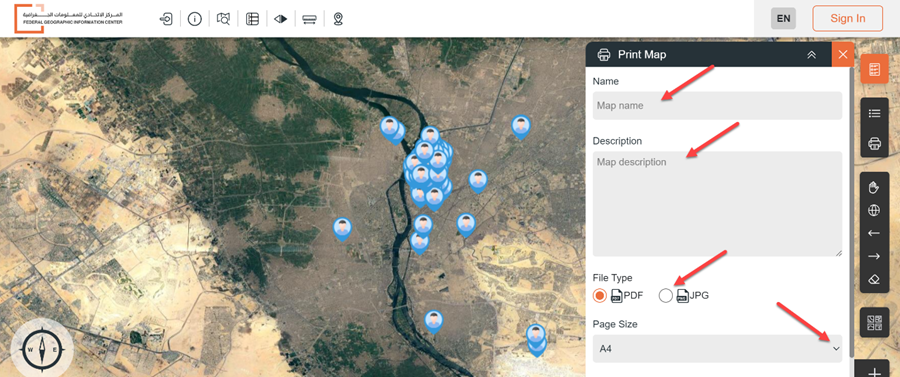

Print Plugin



The Print Plugin is used to print specific map data

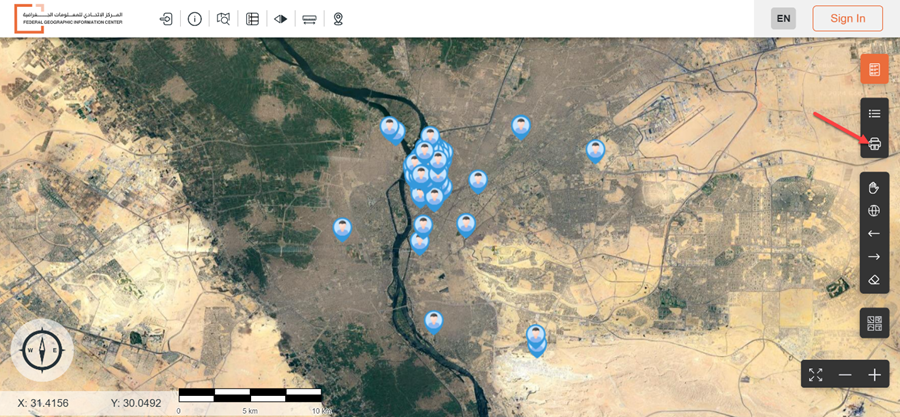

1. Click the Print plugin icon

2. Enter The map name,
   Description,
   Select the file type whether PDF or JPG
   Select the printing page size,
   Then select the Page orientation whether portrait or landscape

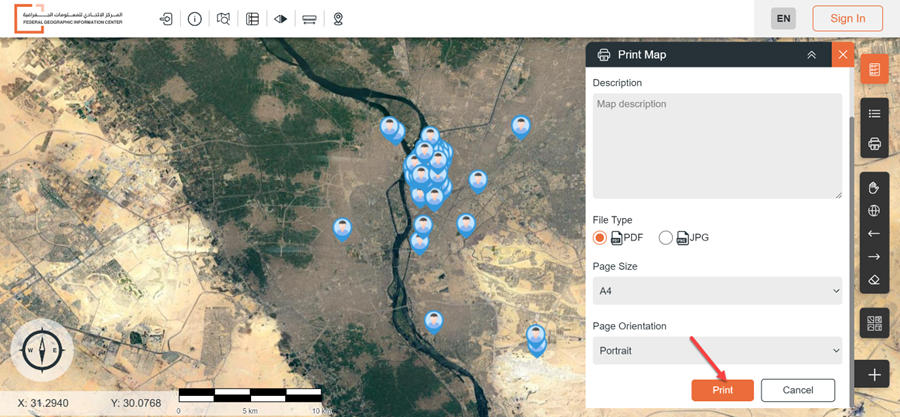

3. Click on Print

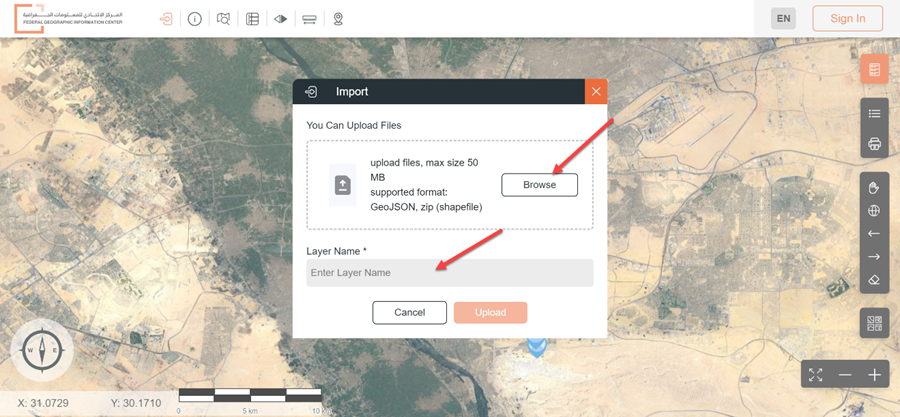

Import Plugin

You can use this plugin to import layers from your device to your map viewer



1. Click on the import icon

2. Browse Your file and enter the layer name

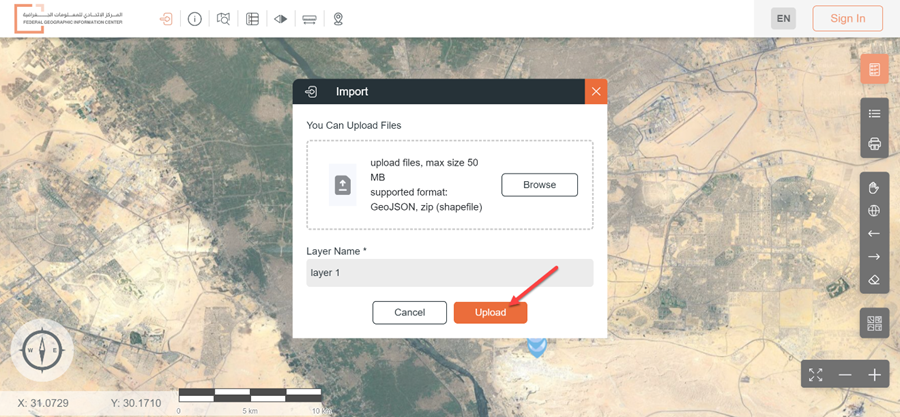

3. Click Upload

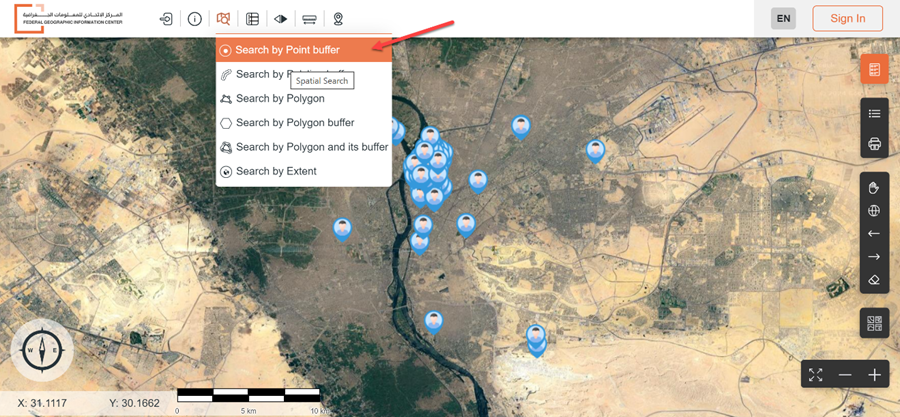

Spatial Search



The spatial search plugin is used to search with different selection options such as selecting a polygon or searching with a point buffer option.

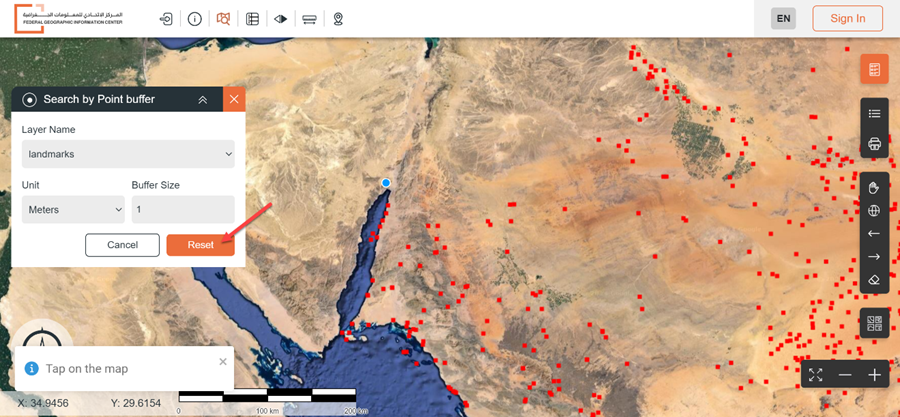

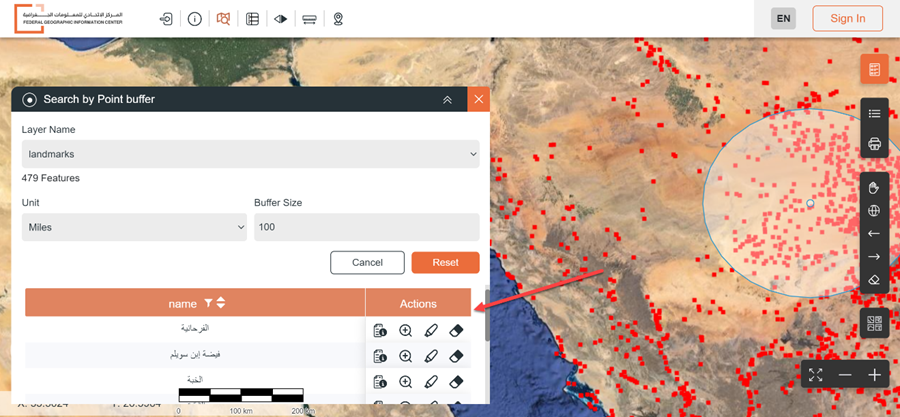

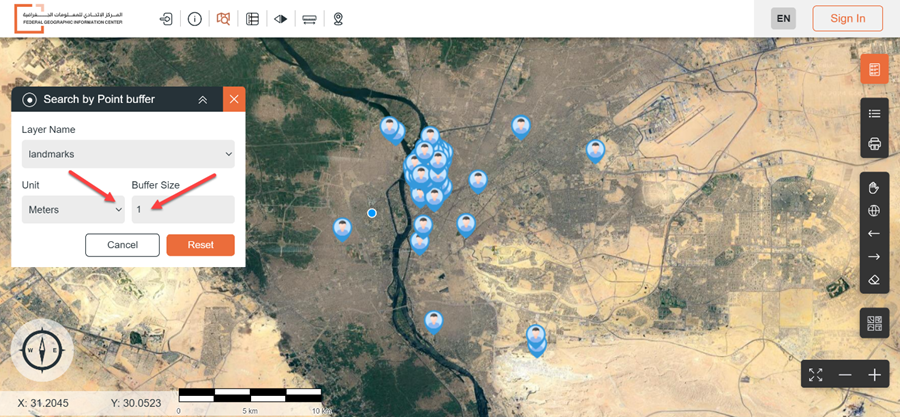

Search by Point buffer

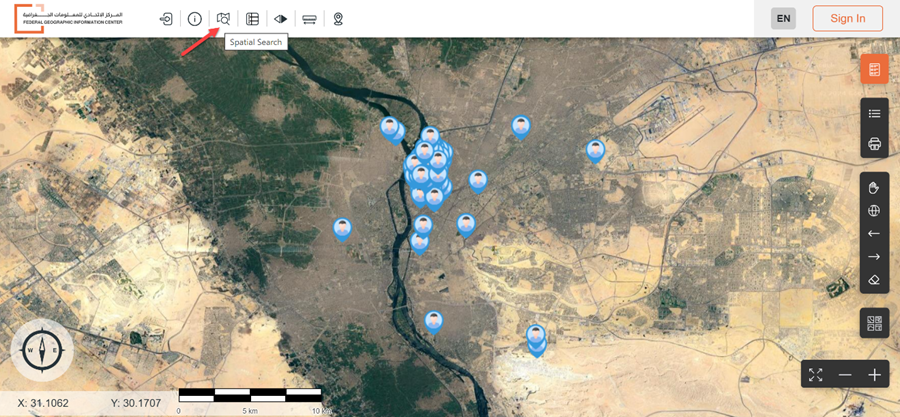

1. Click on the spatial search icon

2. Select Search by Point buffer

3. Select your layer from the drop-down list

4. Choose your buffer unit of measurement

5. Enter your buffer size

6. Tap on the map to determine your point

7. The features in the calculated buffer size will be searched and listed in a grid form

8. You can click on Reset to delete your drawing

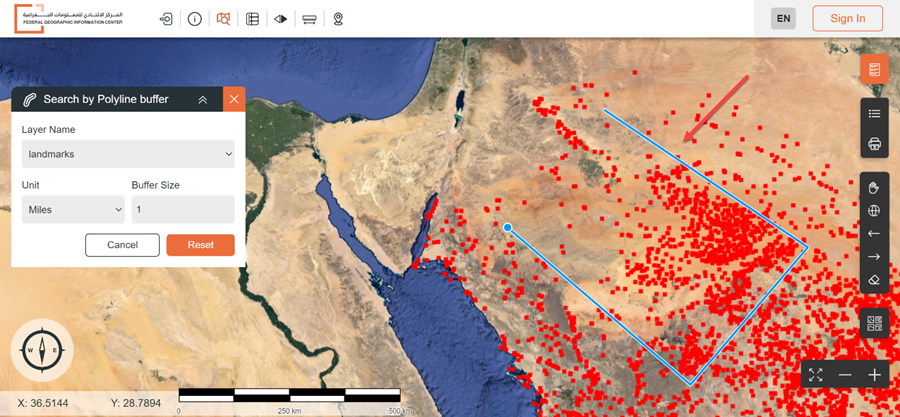

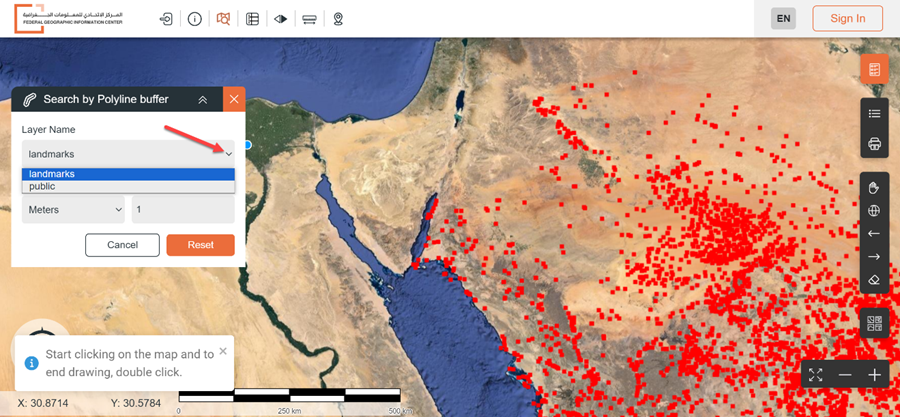

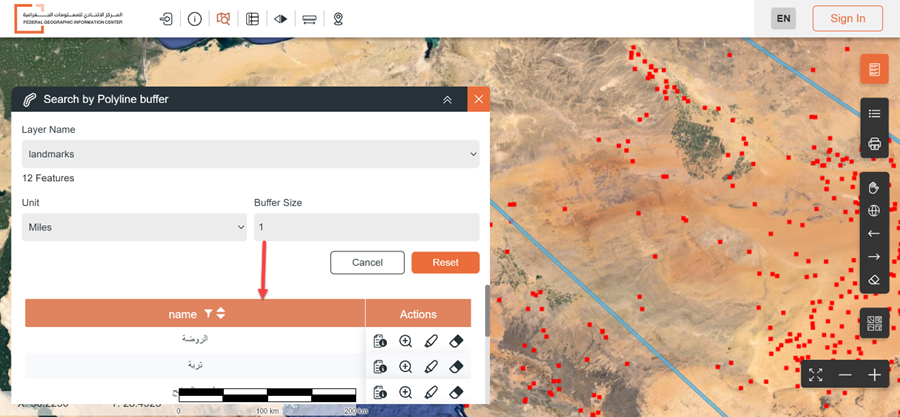

Search by polyline buffer

1. Click on the spatial search icon

2. Click on Search by polyline buffer

3. Select your layer from the drop-down list

4. Choose your buffer unit of measurement

5. Enter your buffer size


6. Click on the map to draw your polyline

7. The features in the calculated buffer size will be searched and listed in a grid form

8. You can click on Reset to delete your drawing

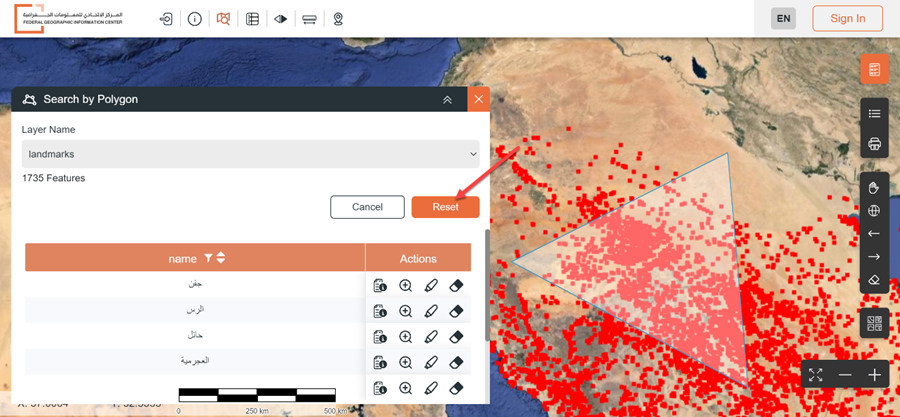

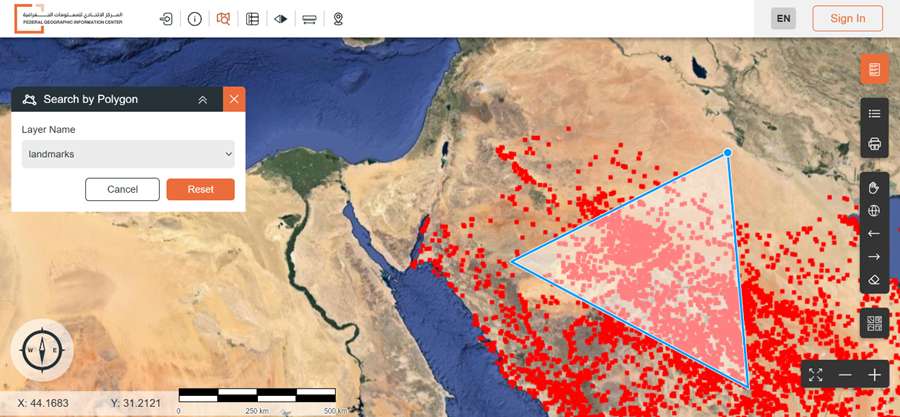

Search by polygon

1. Click on the spatial search icon

2. Click on Search by polygon

3. Select your layer from the drop-down list

4. Click on the map to draw your polygon

5. Your selected features will be listed in a grid form

6. You can click on Reset to delete your drawing

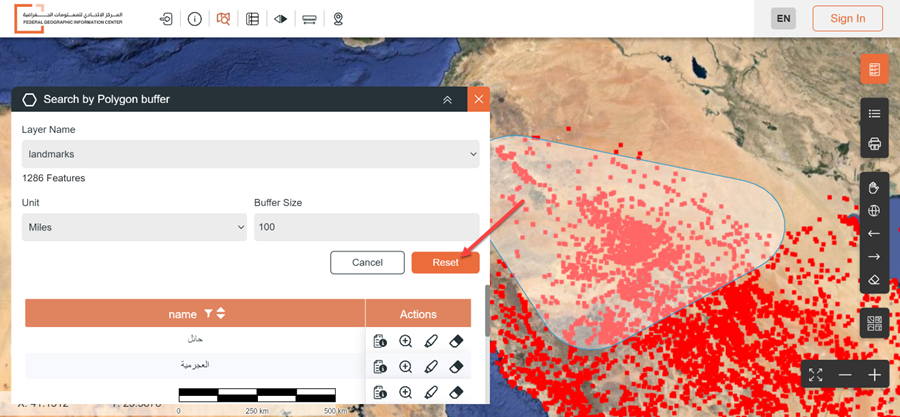

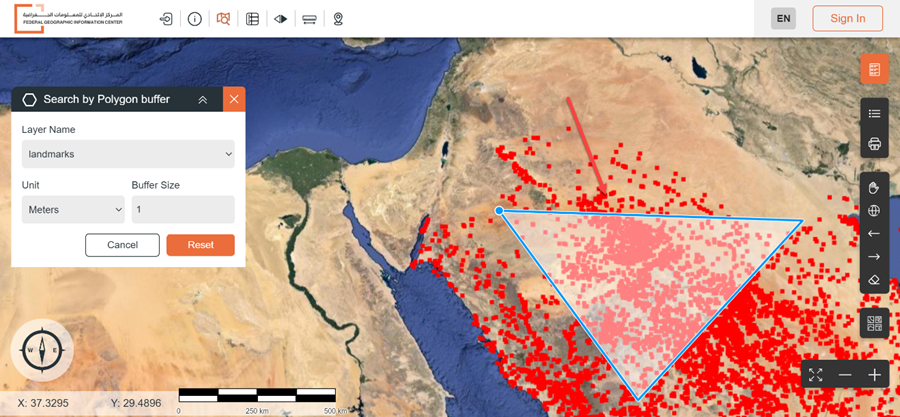

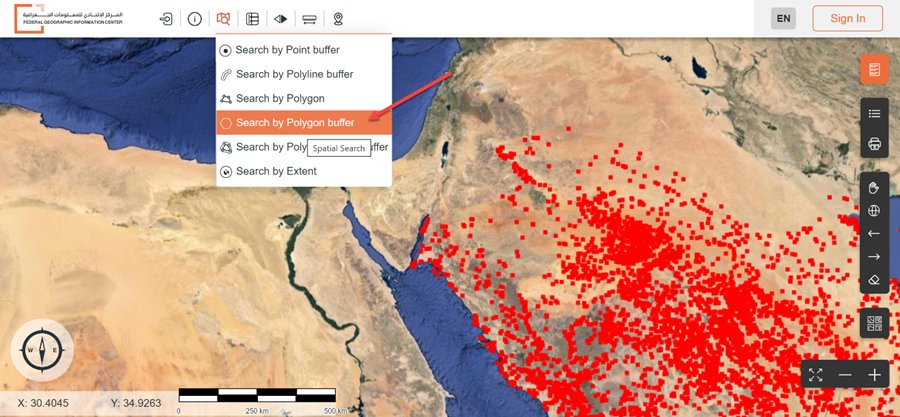

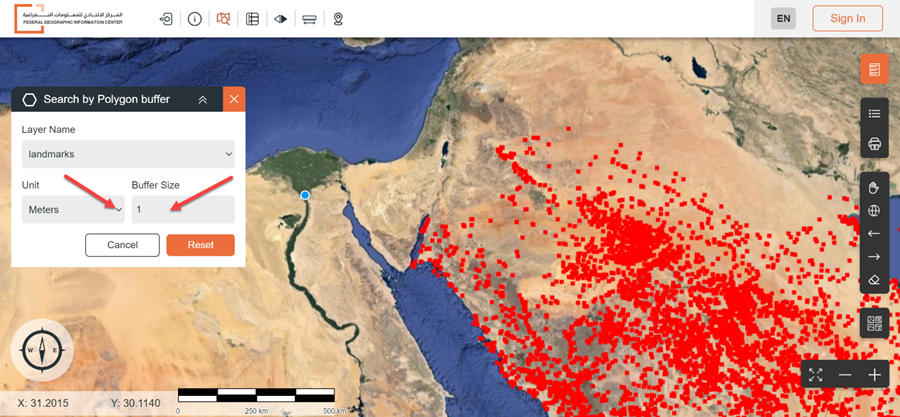

Search by polygon buffer

1. Click on the spatial search icon

2. Click on Search by polygon buffer

3. Select your layer from the drop-down list

4. Choose your buffer unit of measurement

5. Enter your buffer size

6. Click on the map to draw your polygon

7. The features in the calculated buffer size will be searched and listed in a grid form

8. You can click on Reset to delete your drawing

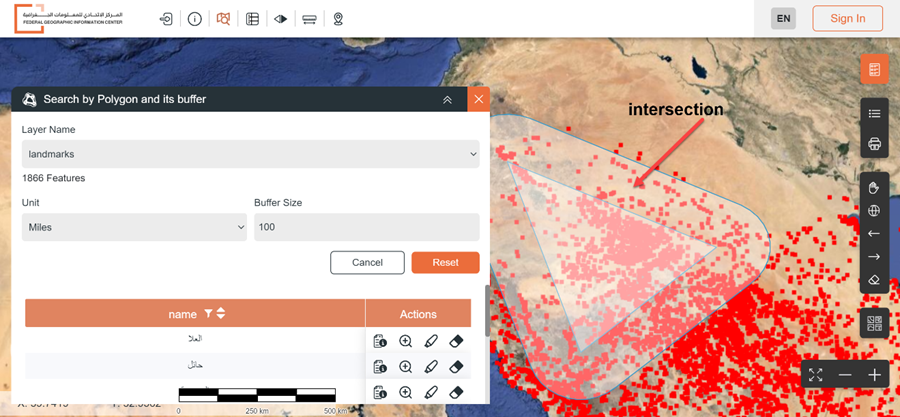

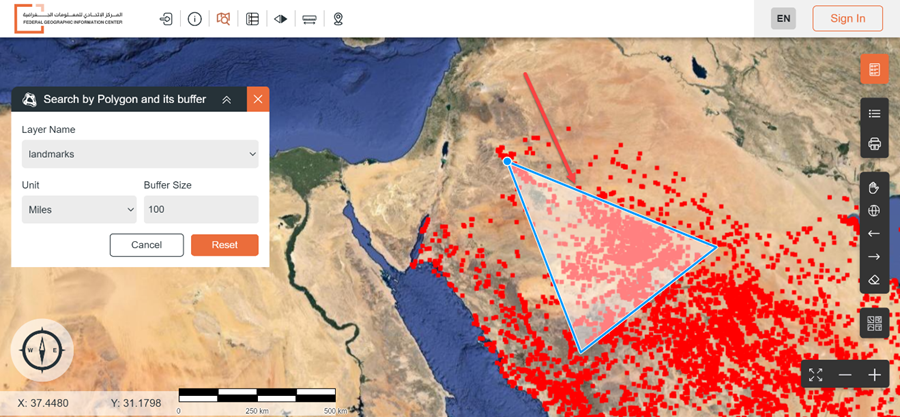

Search by polygon and its buffer

1. Click on the spatial search icon

2. Click on Search by polygon and its buffer

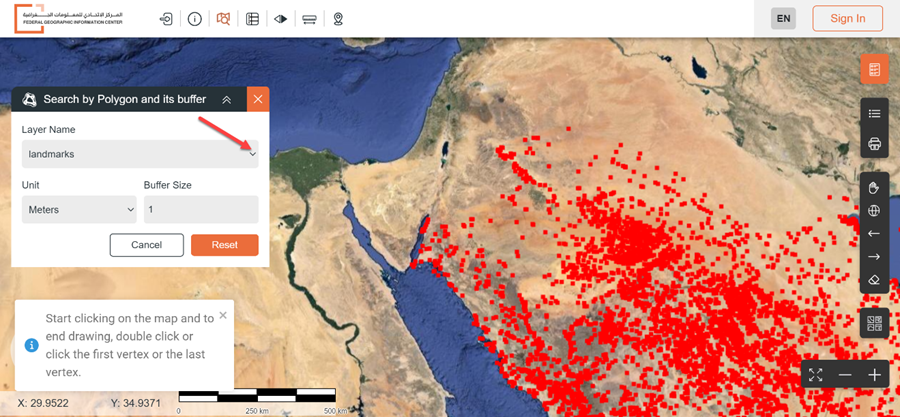

3. Select your layer from the drop-down list

4. Choose your buffer unit of measurement

5. Enter your buffer size

6. Click on the map to draw your polygon

7. The features that will display in the grid will be the intersection between the polygon that the user drew and the calculated buffer

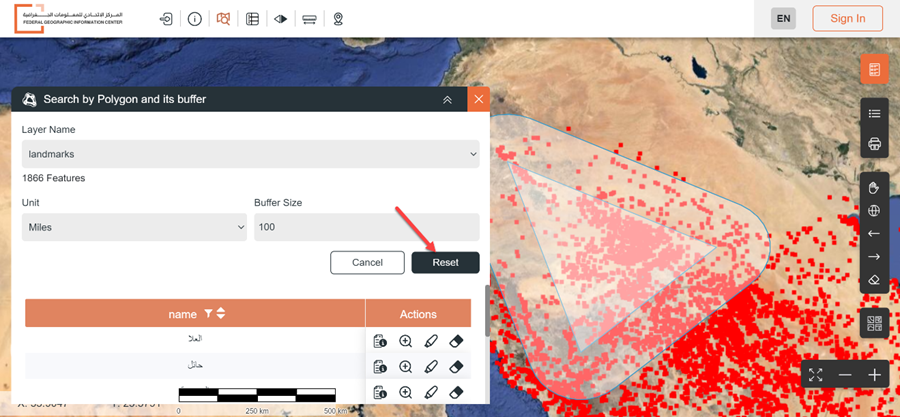

8. You can click on Reset to delete your drawing

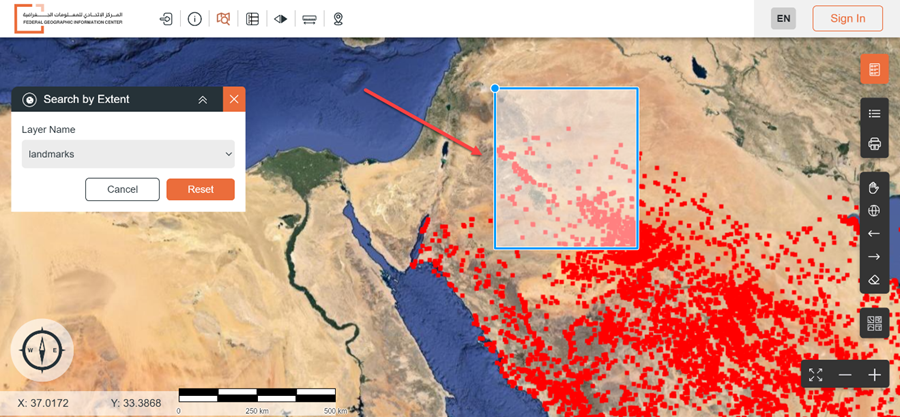

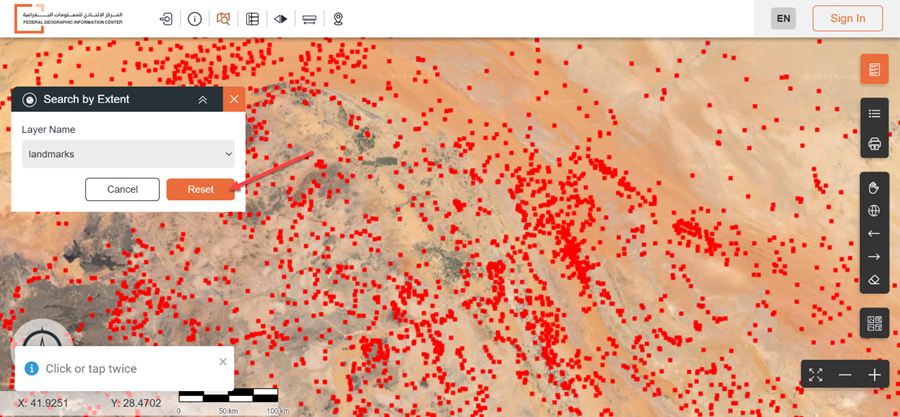

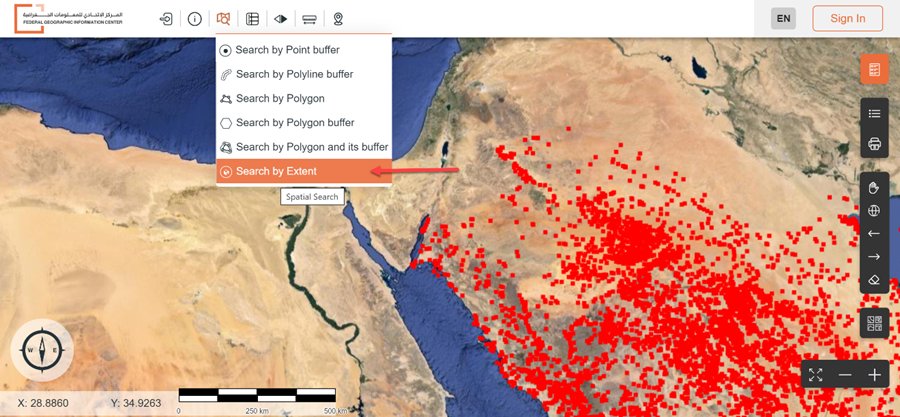

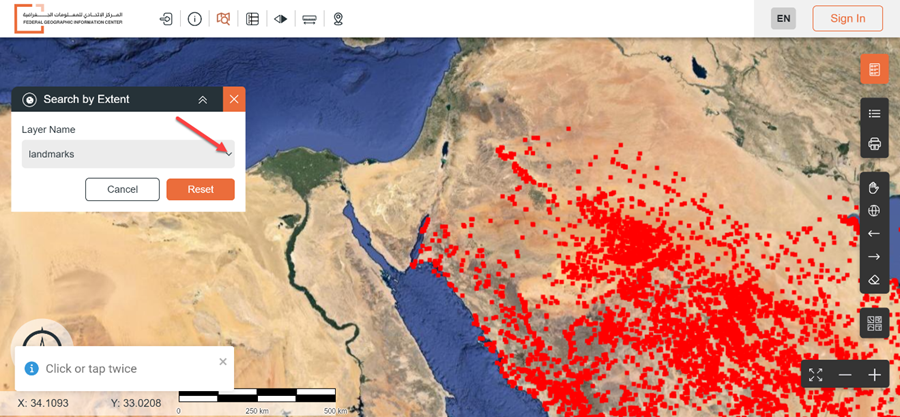

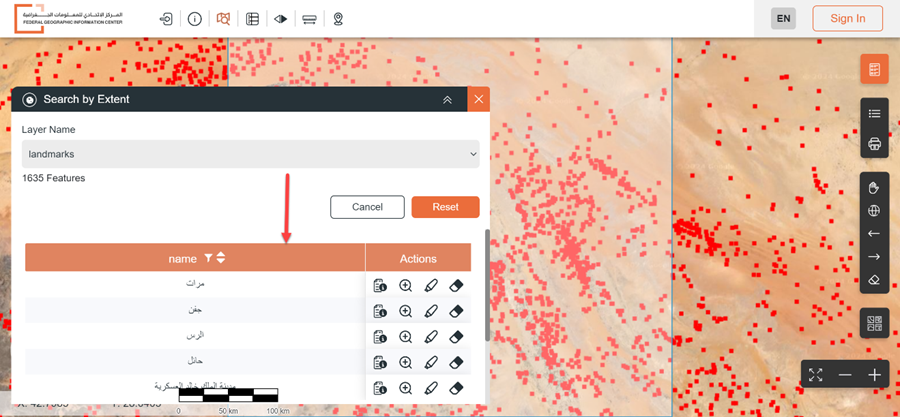

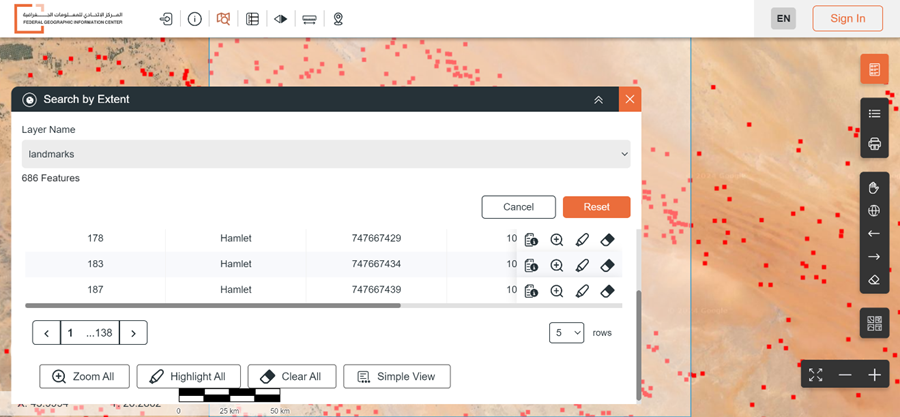

Search by extent

1. Click on the spatial search icon

2. Click on Search by Extent

3. Select your layer from the drop-down list


4. Click on the map to draw your extent

5. Your selected features will be listed in a grid form

6. You can click on Reset to delete your drawing


Search by polygon buffer

1. Click on the spatial search icon

2. Click on Search by polygon buffer

3. Select your layer from the drop-down list

4. Choose your buffer unit of measurement

5. Enter your buffer size

6. Click on the map to draw your polygon

7. The features in the calculated buffer size will be searched and listed in a grid form

8. You can click on Reset to delete your drawing


Search by polygon and its buffer

1. Click on the spatial search icon

2. Click on Search by polygon and its buffer

3. Select your layer from the drop-down list

4. Choose your buffer unit of measurement

5. Enter your buffer size

6. Click on the map to draw your polygon

7. The features that will display in the grid will be the intersection between the polygon that the user drew and the calculated buffer


8. You can click on Reset to delete your drawing


Search by extent

1. Click on the spatial search icon

2. Click on Search by Extent

3. Select your layer from the drop-down list

4. Click on the map to draw your extent

5. Your selected features will be listed in a grid form

6. You can click on Reset to delete your drawing

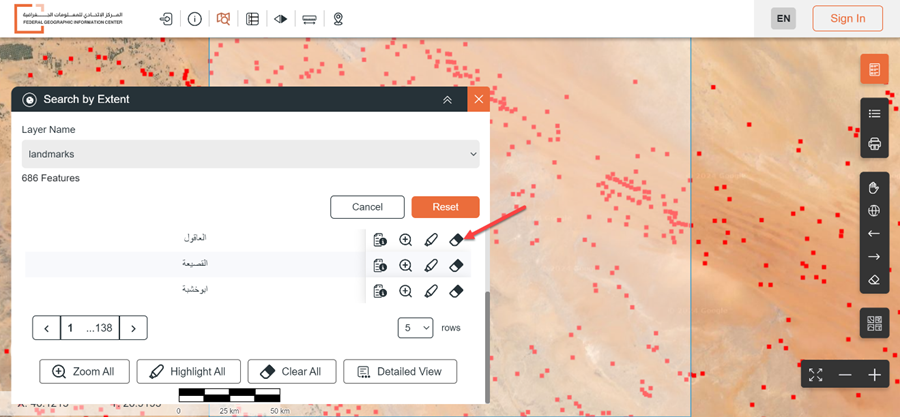

How to perform functions on your searched features

1. Click on zoom to zoom on this specific feature

2. Click on highlight to highlight this specific feature on the map

3. Click on clear to clear functions performed on this specific feature

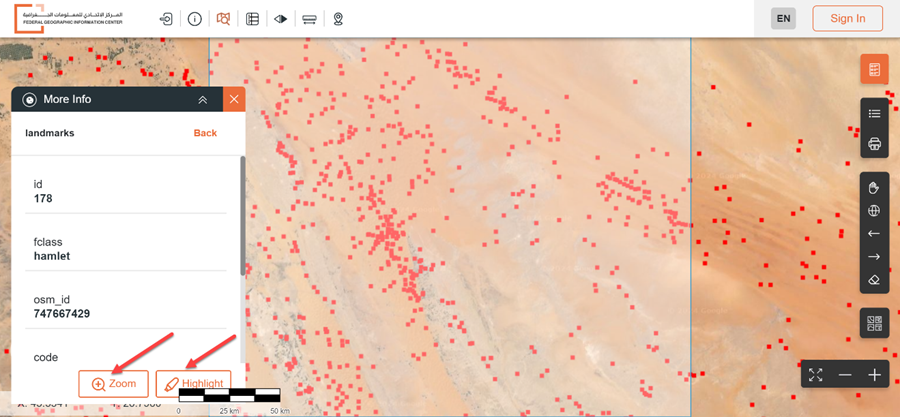

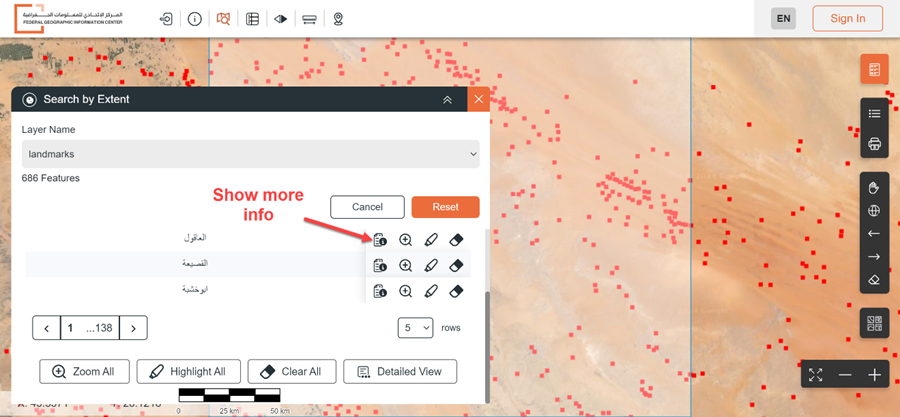

4. Select the more info icon beside the specific feature that you want to show all its details (you can zoom or highlight this feature from the more details grid)


5. Click on zoom all to zoom on all the listed features

6. Click on Highlight all to highlight all the listed features

7. Click on clear all to clear all function applied on all features

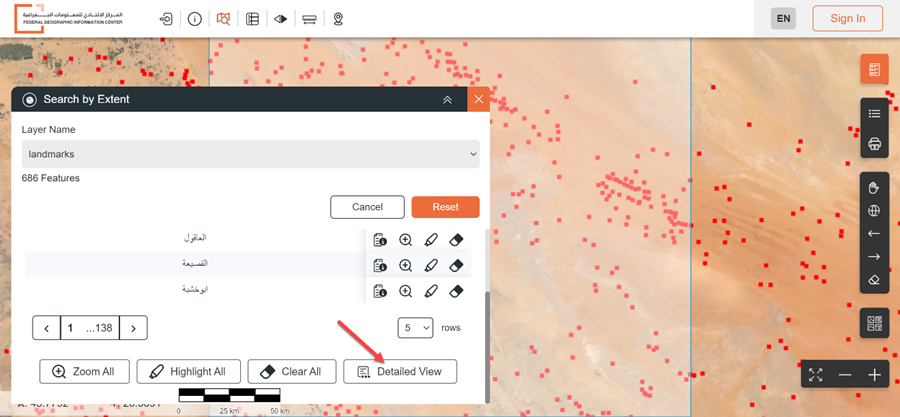

8. Click on Detailed View to view all details for all the listed features

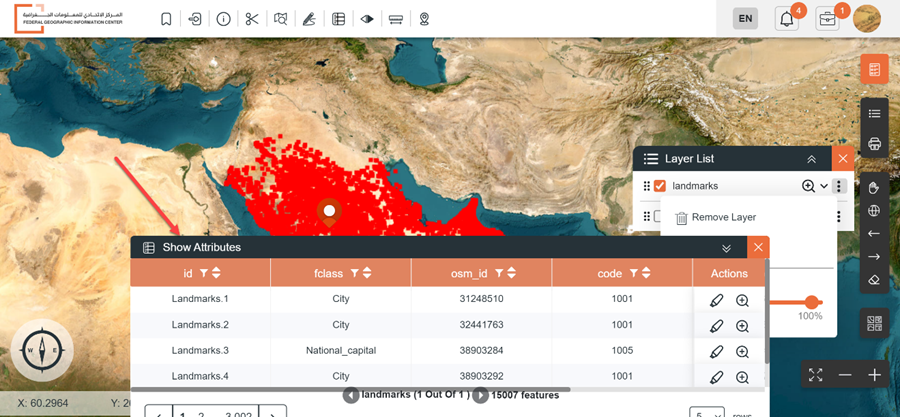

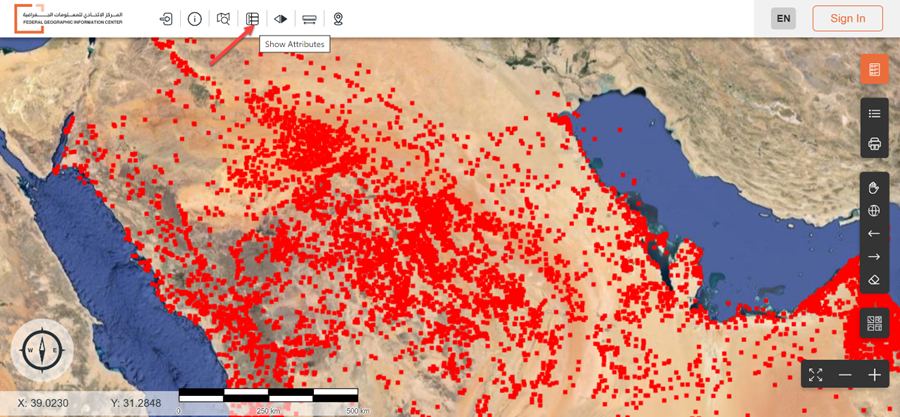

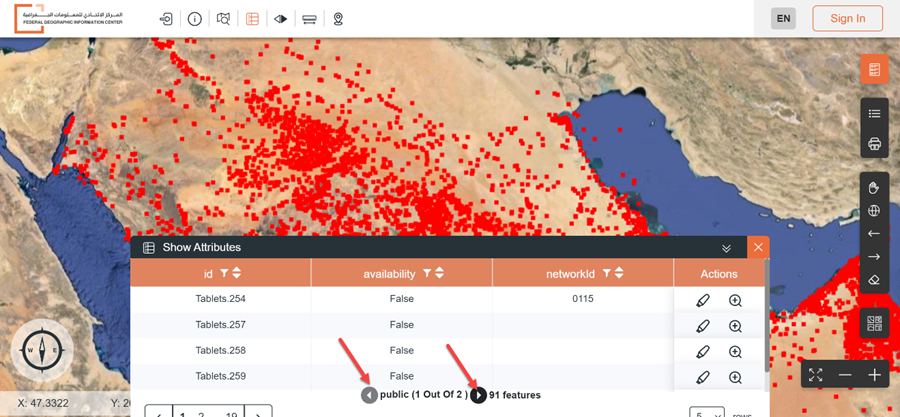

Show attribute Plugin



This plugin provides a table of information related to the currently opened layers. This table should offer details about available attributes for the layer.

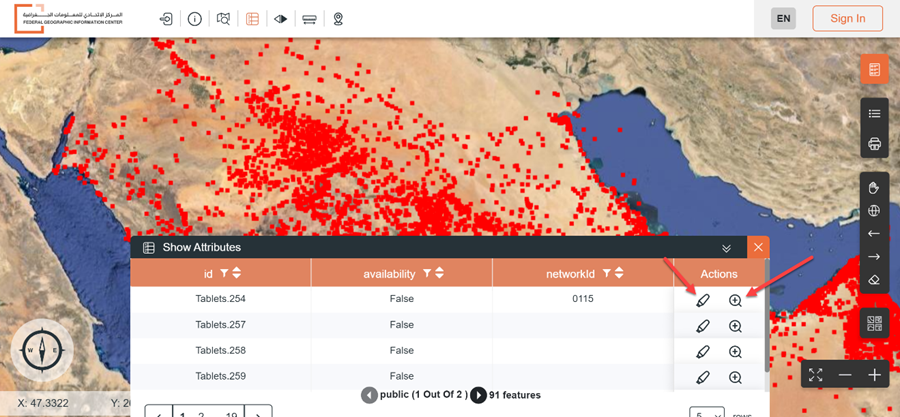

1. Click the Show attribute plugin icon

2. A table will open up showing the currently selected layer’s attributes

3. You can switch between layers using the arrows shown in the below image

4. You can zoom and highlight any attribute on the map by clicking the icons beside the attribute that you want



Map navigation Toolbar



the Map Navigation Toolbar is a feature-rich tool designed to enhance the user experience within the FGIC Map Viewer. It provides various functionalities to navigate the map efficiently and manage its content.

1. Click on the zoom in icon to zoom into your map

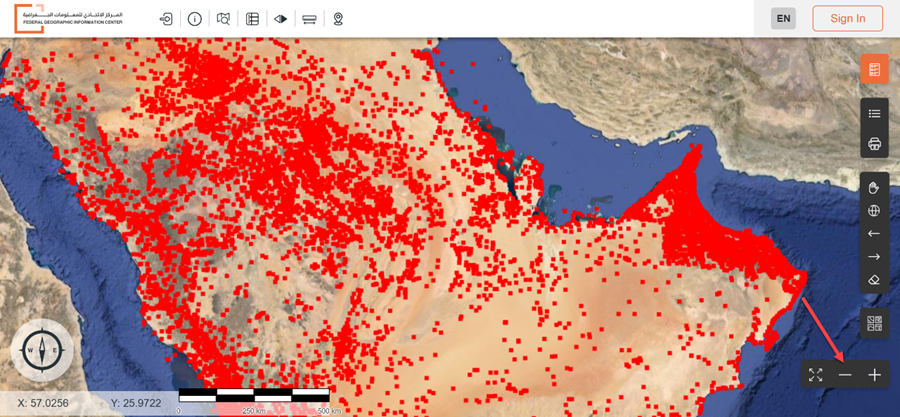

2. Click on zoom out icon to zoom out of the map view

3. Click the full screen icon to view your map in full screen

4. Click the clear graphics icon to clear all highlights from the map

5. Click the full extent icon to view your map in the initial extent

6. Click the pan icon and start dragging your map to shift the map image relative to the display window without changing the viewing scale

7. Click the back extent icon to step backward through the previous map view changes

8. Click the Next extent icon to step forward through the map view changes
